PRECISION ALIGNMENT

UCFC Series

Circular cartridge-type flange unit with four-bolt mounting. Engineered for precise axial alignment and consistent performance in industrial rotating machinery.

Technical Specs Request CAD Data

UCFC Series Render

DIMENSIONAL REFERENCE

UCFC Series Schematic

Circular cartridge dimensional layout for UCFC units. Reference for pilot diameter and axial clearance planning.

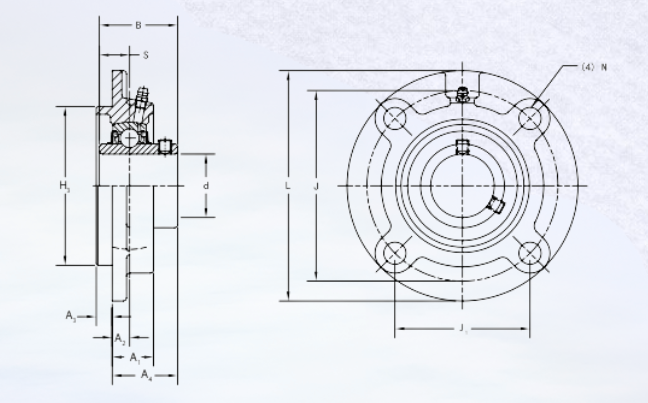

UCFC Series Dimensional Schematic

FIG. 1 — UCFC SERIES CIRCULAR FLANGE DIMENSIONAL DRAWING | All dimensions subject to model specification

Technical Specifications

Full structural data for UCFC Series circular cartridge units.

UCFC201

Circular Flange

Shaft Diameter

12 mm

Outer Dia (L)	100
Pitch (J)	78
Inner Pitch (J1)	55.1
A1	20.5
A2	10
A3	5
A4	28.3
Pilot Dia (H3)	62
S	12.7
B	31
N	12

UCFC201-8

Circular Flange

Shaft Diameter

12.7 mm

Outer Dia (L)	100
Pitch (J)	78
Inner Pitch (J1)	55.1
A1	20.5
A2	10
A3	5
A4	28.3
Pilot Dia (H3)	62
S	12.7
B	31
N	12

UCFC202

Circular Flange

Shaft Diameter

15 mm

Outer Dia (L)	100
Pitch (J)	78
Inner Pitch (J1)	55.1
A1	20.5
A2	10
A3	5
A4	28.3
Pilot Dia (H3)	62
S	12.7
B	31
N	12

UCFC202-10

Circular Flange

Shaft Diameter

15.87 mm

Outer Dia (L)	100
Pitch (J)	78
Inner Pitch (J1)	55.1
A1	20.5
A2	10
A3	5
A4	28.3
Pilot Dia (H3)	62
S	12.7
B	31
N	12

UCFC203

Circular Flange

Shaft Diameter

17 mm

Outer Dia (L)	100
Pitch (J)	78
Inner Pitch (J1)	55.1
A1	20.5
A2	10
A3	5
A4	28.3
Pilot Dia (H3)	62
S	12.7
B	31
N	12

UCFC204-12

Circular Flange

Shaft Diameter

19.05 mm

Outer Dia (L)	100
Pitch (J)	78
Inner Pitch (J1)	55.1
A1	20.5
A2	10
A3	5
A4	28.3
Pilot Dia (H3)	62
S	12.7
B	31
N	12

UCFC204

Circular Flange

Shaft Diameter

20 mm

Outer Dia (L)	100
Pitch (J)	78
Inner Pitch (J1)	55.1
A1	20.5
A2	10
A3	5
A4	28.3
Pilot Dia (H3)	62
S	12.7
B	31
N	12

UCFC205-14

Circular Flange

Shaft Diameter

22.22 mm

Outer Dia (L)	115
Pitch (J)	90
Inner Pitch (J1)	63.6
A1	21
A2	10
A3	6
A4	29.8
Pilot Dia (H3)	70
S	14.3
B	34.1
N	12

UCFC205-15

Circular Flange

Shaft Diameter

23.81 mm

Outer Dia (L)	115
Pitch (J)	90
Inner Pitch (J1)	63.6
A1	21
A2	10
A3	6
A4	29.8
Pilot Dia (H3)	70
S	14.3
B	34.1
N	12

UCFC205

Circular Flange

Shaft Diameter

25 mm

Outer Dia (L)	115
Pitch (J)	90
Inner Pitch (J1)	63.6
A1	21
A2	10
A3	6
A4	29.8
Pilot Dia (H3)	70
S	14.3
B	34.1
N	12

UCFC205-16

Circular Flange

Shaft Diameter

25.4 mm

Outer Dia (L)	115
Pitch (J)	90
Inner Pitch (J1)	63.6
A1	21
A2	10
A3	6
A4	29.8
Pilot Dia (H3)	70
S	14.3
B	34.1
N	12

UCFC206-18

Circular Flange

Shaft Diameter

28.57 mm

Outer Dia (L)	125
Pitch (J)	100
Inner Pitch (J1)	70.7
A1	23
A2	10
A3	8
A4	32.2
Pilot Dia (H3)	80
S	15.9
B	38.1
N	12

UCFC206

Circular Flange

Shaft Diameter

30 mm

Outer Dia (L)	125
Pitch (J)	100
Inner Pitch (J1)	70.7
A1	23
A2	10
A3	8
A4	32.2
Pilot Dia (H3)	80
S	15.9
B	38.1
N	12

UCFC206-19

Circular Flange

Shaft Diameter

30.16 mm

Outer Dia (L)	125
Pitch (J)	100
Inner Pitch (J1)	70.7
A1	23
A2	10
A3	8
A4	32.2
Pilot Dia (H3)	80
S	15.9
B	38.1
N	12

UCFC206-20

Circular Flange

Shaft Diameter

31.75 mm

Outer Dia (L)	125
Pitch (J)	100
Inner Pitch (J1)	70.7
A1	23
A2	10
A3	8
A4	32.2
Pilot Dia (H3)	80
S	15.9
B	38.1
N	12

UCFC207-20

Circular Flange

Shaft Diameter

31.75 mm

Outer Dia (L)	135
Pitch (J)	110
Inner Pitch (J1)	77.8
A1	26
A2	11
A3	8
A4	36.4
Pilot Dia (H3)	90
S	17.5
B	42.9
N	14

UCFC207-21

Circular Flange

Shaft Diameter

33.34 mm

Outer Dia (L)	135
Pitch (J)	110
Inner Pitch (J1)	77.8
A1	26
A2	11
A3	8
A4	36.4
Pilot Dia (H3)	90
S	17.5
B	42.9
N	14

UCFC207-22

Circular Flange

Shaft Diameter

34.925 mm

Outer Dia (L)	135
Pitch (J)	110
Inner Pitch (J1)	77.8
A1	26
A2	11
A3	8
A4	36.4
Pilot Dia (H3)	90
S	17.5
B	42.9
N	14

UCFC207

Circular Flange

Shaft Diameter

35 mm

Outer Dia (L)	135
Pitch (J)	110
Inner Pitch (J1)	77.8
A1	26
A2	11
A3	8
A4	36.4
Pilot Dia (H3)	90
S	17.5
B	42.9
N	14

UCFC207-23

Circular Flange

Shaft Diameter

36.51 mm

Outer Dia (L)	135
Pitch (J)	110
Inner Pitch (J1)	77.8
A1	26
A2	11
A3	8
A4	36.4
Pilot Dia (H3)	90
S	17.5
B	42.9
N	14

UCFC208-24

Circular Flange

Shaft Diameter

38.1 mm

Outer Dia (L)	145
Pitch (J)	120
Inner Pitch (J1)	84.8
A1	26
A2	11
A3	10
A4	41.2
Pilot Dia (H3)	100
S	19
B	49.2
N	14

UCFC208-25

Circular Flange

Shaft Diameter

39.68 mm

Outer Dia (L)	145
Pitch (J)	120
Inner Pitch (J1)	84.8
A1	26
A2	11
A3	10
A4	41.2
Pilot Dia (H3)	100
S	19
B	49.2
N	14

UCFC208

Circular Flange

Shaft Diameter

40 mm

Outer Dia (L)	145
Pitch (J)	120
Inner Pitch (J1)	84.8
A1	26
A2	11
A3	10
A4	41.2
Pilot Dia (H3)	100
S	19
B	49.2
N	14

UCFC209-26

Circular Flange

Shaft Diameter

41.27 mm

Outer Dia (L)	160
Pitch (J)	132
Inner Pitch (J1)	93.3
A1	26
A2	10
A3	12
A4	40.2
Pilot Dia (H3)	105
S	19
B	49.2
N	16

UCFC209-27

Circular Flange

Shaft Diameter

42.86 mm

Outer Dia (L)	160
Pitch (J)	132
Inner Pitch (J1)	93.3
A1	26
A2	10
A3	12
A4	40.2
Pilot Dia (H3)	105
S	19
B	49.2
N	16

UCFC209-28

Circular Flange

Shaft Diameter

44.45 mm

Outer Dia (L)	160
Pitch (J)	132
Inner Pitch (J1)	93.3
A1	26
A2	10
A3	12
A4	40.2
Pilot Dia (H3)	105
S	19
B	49.2
N	16

UCFC209

Circular Flange

Shaft Diameter

45 mm

Outer Dia (L)	160
Pitch (J)	132
Inner Pitch (J1)	93.3
A1	26
A2	10
A3	12
A4	40.2
Pilot Dia (H3)	105
S	19
B	49.2
N	16

UCFC210-30

Circular Flange

Shaft Diameter

47.62 mm

Outer Dia (L)	165
Pitch (J)	138
Inner Pitch (J1)	97.6
A1	28
A2	13
A3	12
A4	42.6
Pilot Dia (H3)	110
S	19
B	51.6
N	16

UCFC210-31

Circular Flange

Shaft Diameter

49.21 mm

Outer Dia (L)	165
Pitch (J)	138
Inner Pitch (J1)	97.6
A1	28
A2	13
A3	12
A4	42.6
Pilot Dia (H3)	110
S	19
B	51.6
N	16

UCFC210

Circular Flange

Shaft Diameter

50 mm

Outer Dia (L)	165
Pitch (J)	138
Inner Pitch (J1)	97.6
A1	28
A2	13
A3	12
A4	42.6
Pilot Dia (H3)	110
S	19
B	51.6
N	16

UCFC210-32

Circular Flange

Shaft Diameter

50.8 mm

Outer Dia (L)	165
Pitch (J)	138
Inner Pitch (J1)	97.6
A1	28
A2	13
A3	12
A4	42.6
Pilot Dia (H3)	110
S	19
B	51.6
N	16

UCFC211-32

Circular Flange

Shaft Diameter

50.8 mm

Outer Dia (L)	185
Pitch (J)	150
Inner Pitch (J1)	106.1
A1	31
A2	13
A3	12
A4	46.4
Pilot Dia (H3)	125
S	22.2
B	55.6
N	16

UCFC211-34

Circular Flange

Shaft Diameter

53.97 mm

Outer Dia (L)	185
Pitch (J)	150
Inner Pitch (J1)	106.1
A1	31
A2	13
A3	12
A4	46.4
Pilot Dia (H3)	125
S	22.2
B	55.6
N	16

UCFC211

Circular Flange

Shaft Diameter

55 mm

Outer Dia (L)	185
Pitch (J)	150
Inner Pitch (J1)	106.1
A1	31
A2	13
A3	12
A4	46.4
Pilot Dia (H3)	125
S	22.2
B	55.6
N	16

UCFC211-35

Circular Flange

Shaft Diameter

55.56 mm

Outer Dia (L)	185
Pitch (J)	150
Inner Pitch (J1)	106.1
A1	31
A2	13
A3	12
A4	46.4
Pilot Dia (H3)	125
S	22.2
B	55.6
N	16

UCFC212-36

Circular Flange

Shaft Diameter

57.15 mm

Outer Dia (L)	195
Pitch (J)	160
Inner Pitch (J1)	113.1
A1	36
A2	17
A3	12
A4	56.7
Pilot Dia (H3)	135
S	25.4
B	65.1
N	19

UCFC212

Circular Flange

Shaft Diameter

60 mm

Outer Dia (L)	195
Pitch (J)	160
Inner Pitch (J1)	113.1
A1	36
A2	17
A3	12
A4	56.7
Pilot Dia (H3)	135
S	25.4
B	65.1
N	19

UCFC212-38

Circular Flange

Shaft Diameter

60.32 mm

Outer Dia (L)	195
Pitch (J)	160
Inner Pitch (J1)	113.1
A1	36
A2	17
A3	12
A4	56.7
Pilot Dia (H3)	135
S	25.4
B	65.1
N	19

UCFC212-39

Circular Flange

Shaft Diameter

61.91 mm

Outer Dia (L)	195
Pitch (J)	160
Inner Pitch (J1)	113.1
A1	36
A2	17
A3	12
A4	56.7
Pilot Dia (H3)	135
S	25.4
B	65.1
N	19

UCFC213-40

Circular Flange

Shaft Diameter

63.5 mm

Outer Dia (L)	205
Pitch (J)	170
Inner Pitch (J1)	120.2
A1	36
A2	16
A3	14
A4	55.7
Pilot Dia (H3)	145
S	25.4
B	65.1
N	19

UCFC213

Circular Flange

Shaft Diameter

65 mm

Outer Dia (L)	205
Pitch (J)	170
Inner Pitch (J1)	120.2
A1	36
A2	16
A3	14
A4	55.7
Pilot Dia (H3)	145
S	25.4
B	65.1
N	19

UCFC214-44

Circular Flange

Shaft Diameter

69.85 mm

Outer Dia (L)	215
Pitch (J)	177
Inner Pitch (J1)	125.1
A1	40
A2	17
A3	14
A4	61.4
Pilot Dia (H3)	150
S	30.2
B	74.6
N	19

UCFC214

Circular Flange

Shaft Diameter

70 mm

Outer Dia (L)	215
Pitch (J)	177
Inner Pitch (J1)	125.1
A1	40
A2	17
A3	14
A4	61.4
Pilot Dia (H3)	150
S	30.2
B	74.6
N	19

UCFC215-47

Circular Flange

Shaft Diameter

74.61 mm

Outer Dia (L)	220
Pitch (J)	184
Inner Pitch (J1)	130.1
A1	40
A2	18
A3	16
A4	62.5
Pilot Dia (H3)	160
S	33.3
B	77.8
N	19

UCFC215

Circular Flange

Shaft Diameter

75 mm

Outer Dia (L)	220
Pitch (J)	184
Inner Pitch (J1)	130.1
A1	40
A2	18
A3	16
A4	62.5
Pilot Dia (H3)	160
S	33.3
B	77.8
N	19

UCFC215-48

Circular Flange

Shaft Diameter

76.2 mm

Outer Dia (L)	220
Pitch (J)	184
Inner Pitch (J1)	130.1
A1	40
A2	18
A3	16
A4	62.5
Pilot Dia (H3)	160
S	33.3
B	77.8
N	19

UCFC216-50

Circular Flange

Shaft Diameter

79.37 mm

Outer Dia (L)	240
Pitch (J)	200
Inner Pitch (J1)	141.4
A1	42
A2	18
A3	16
A4	67.3
Pilot Dia (H3)	170
S	33.3
B	82.6
N	23

UCFC216

Circular Flange

Shaft Diameter

80 mm

Outer Dia (L)	240
Pitch (J)	200
Inner Pitch (J1)	141.4
A1	42
A2	18
A3	16
A4	67.3
Pilot Dia (H3)	170
S	33.3
B	82.6
N	23

UCFC217-52

Circular Flange

Shaft Diameter

82.55 mm

Outer Dia (L)	250
Pitch (J)	208
Inner Pitch (J1)	147.1
A1	45
A2	18
A3	18
A4	69.6
Pilot Dia (H3)	180
S	34.1
B	85.7
N	23

UCFC217

Circular Flange

Shaft Diameter

85 mm

Outer Dia (L)	250
Pitch (J)	208
Inner Pitch (J1)	147.1
A1	45
A2	18
A3	18
A4	69.6
Pilot Dia (H3)	180
S	34.1
B	85.7
N	23

UCFC218-56

Circular Flange

Shaft Diameter

88.9 mm

Outer Dia (L)	265
Pitch (J)	220
Inner Pitch (J1)	155.5
A1	50
A2	22
A3	18
A4	78.3
Pilot Dia (H3)	190
S	39.7
B	96
N	23

UCFC218

Circular Flange

Shaft Diameter

90 mm

Outer Dia (L)	265
Pitch (J)	220
Inner Pitch (J1)	155.5
A1	50
A2	22
A3	18
A4	78.3
Pilot Dia (H3)	190
S	39.7
B	96
N	23

M10

UCFC 201-8

Circular Flange

Shaft Diameter

12.7mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.65 kN

L (Diameter)

100 mm

J (Pitch)

78 mm

M10

UCFC 202

Circular Flange

Shaft Diameter

15.0mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.65 kN

L (Diameter)

100 mm

J (Pitch)

78 mm

M10

UCFC 202-10

Circular Flange

Shaft Diameter

15.87mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.65 kN

L (Diameter)

100 mm

J (Pitch)

78 mm

M10

UCFC 203

Circular Flange

Shaft Diameter

17.0mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.65 kN

L (Diameter)

100 mm

J (Pitch)

78 mm

M10

UCFC 204-12

Circular Flange

Shaft Diameter

19.05mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.65 kN

L (Diameter)

100 mm

J (Pitch)

78 mm

M10

UCFC 204

Circular Flange

Shaft Diameter

20.0mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.65 kN

L (Diameter)

100 mm

J (Pitch)

78 mm

M10

UCFC 205-14

Circular Flange

Shaft Diameter

22.22mm

Cr (Dynamic)

14.0 kN

Cor (Static)

7.85 kN

L (Diameter)

115 mm

J (Pitch)

90 mm

M10

UCFC 205-15

Circular Flange

Shaft Diameter

23.81mm

Cr (Dynamic)

14.0 kN

Cor (Static)

7.85 kN

L (Diameter)

115 mm

J (Pitch)

90 mm

M10

UCFC 205

Circular Flange

Shaft Diameter

25.0mm

Cr (Dynamic)

14.0 kN

Cor (Static)

7.85 kN

L (Diameter)

115 mm

J (Pitch)

90 mm

M10

UCFC 205-16

Circular Flange

Shaft Diameter

25.4mm

Cr (Dynamic)

14.0 kN

Cor (Static)

7.85 kN

L (Diameter)

115 mm

J (Pitch)

90 mm

M10

UCFC 206-18

Circular Flange

Shaft Diameter

28.57mm

Cr (Dynamic)

19.5 kN

Cor (Static)

11.3 kN

L (Diameter)

125 mm

J (Pitch)

100 mm

M10

UCFC 206

Circular Flange

Shaft Diameter

30.0mm

Cr (Dynamic)

19.5 kN

Cor (Static)

11.3 kN

L (Diameter)

125 mm

J (Pitch)

100 mm

M10

UCFC 206-19

Circular Flange

Shaft Diameter

30.16mm

Cr (Dynamic)

19.5 kN

Cor (Static)

11.3 kN

L (Diameter)

125 mm

J (Pitch)

100 mm

M10

UCFC 206-20

Circular Flange

Shaft Diameter

31.75mm

Cr (Dynamic)

19.5 kN

Cor (Static)

11.3 kN

L (Diameter)

125 mm

J (Pitch)

100 mm

M10

UCFC 207-20

Circular Flange

Shaft Diameter

31.75mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

L (Diameter)

135 mm

J (Pitch)

110 mm

M12

UCFC 207-21

Circular Flange

Shaft Diameter

33.34mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

L (Diameter)

135 mm

J (Pitch)

110 mm

M12

UCFC 207-22

Circular Flange

Shaft Diameter

34.925mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

L (Diameter)

135 mm

J (Pitch)

110 mm

M12

UCFC 207

Circular Flange

Shaft Diameter

35.0mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

L (Diameter)

135 mm

J (Pitch)

110 mm

M12

UCFC 207-23

Circular Flange

Shaft Diameter

36.51mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

L (Diameter)

135 mm

J (Pitch)

110 mm

M12

UCFC 208-24

Circular Flange

Shaft Diameter

38.1mm

Cr (Dynamic)

29.1 kN

Cor (Static)

17.8 kN

L (Diameter)

145 mm

J (Pitch)

120 mm

M12

UCFC 208-25

Circular Flange

Shaft Diameter

39.68mm

Cr (Dynamic)

29.1 kN

Cor (Static)

17.8 kN

L (Diameter)

145 mm

J (Pitch)

120 mm

M12

UCFC 208

Circular Flange

Shaft Diameter

40.0mm

Cr (Dynamic)

29.1 kN

Cor (Static)

17.8 kN

L (Diameter)

145 mm

J (Pitch)

120 mm

M12

UCFC 209-26

Circular Flange

Shaft Diameter

41.27mm

Cr (Dynamic)

34.1 kN

Cor (Static)

21.3 kN

L (Diameter)

160 mm

J (Pitch)

132 mm

M14

UCFC 209-27

Circular Flange

Shaft Diameter

42.86mm

Cr (Dynamic)

34.1 kN

Cor (Static)

21.3 kN

L (Diameter)

160 mm

J (Pitch)

132 mm

M14

UCFC 209-28

Circular Flange

Shaft Diameter

44.45mm

Cr (Dynamic)

34.1 kN

Cor (Static)

21.3 kN

L (Diameter)

160 mm

J (Pitch)

132 mm

M14

UCFC 209

Circular Flange

Shaft Diameter

45.0mm

Cr (Dynamic)

34.1 kN

Cor (Static)

21.3 kN

L (Diameter)

160 mm

J (Pitch)

132 mm

M14

UCFC 210-30

Circular Flange

Shaft Diameter

47.62mm

Cr (Dynamic)

35.1 kN

Cor (Static)

23.3 kN

L (Diameter)

165 mm

J (Pitch)

138 mm

M14

UCFC 210-31

Circular Flange

Shaft Diameter

49.21mm

Cr (Dynamic)

35.1 kN

Cor (Static)

23.3 kN

L (Diameter)

165 mm

J (Pitch)

138 mm

M14

UCFC 210

Circular Flange

Shaft Diameter

50.0mm

Cr (Dynamic)

35.1 kN

Cor (Static)

23.3 kN

L (Diameter)

165 mm

J (Pitch)

138 mm

M14

UCFC 210-32

Circular Flange

Shaft Diameter

50.8mm

Cr (Dynamic)

35.1 kN

Cor (Static)

23.3 kN

L (Diameter)

165 mm

J (Pitch)

138 mm

M14

UCFC 211-32

Circular Flange

Shaft Diameter

50.8mm

Cr (Dynamic)

43.4 kN

Cor (Static)

29.4 kN

L (Diameter)

185 mm

J (Pitch)

150 mm

M16

UCFC 211-34

Circular Flange

Shaft Diameter

53.97mm

Cr (Dynamic)

43.4 kN

Cor (Static)

29.4 kN

L (Diameter)

185 mm

J (Pitch)

150 mm

M16

UCFC 211

Circular Flange

Shaft Diameter

55.0mm

Cr (Dynamic)

43.4 kN

Cor (Static)

29.4 kN

L (Diameter)

185 mm

J (Pitch)

150 mm

M16

UCFC 211-35

Circular Flange

Shaft Diameter

55.56mm

Cr (Dynamic)

43.4 kN

Cor (Static)

29.4 kN

L (Diameter)

185 mm

J (Pitch)

150 mm

M16

UCFC 212-36

Circular Flange

Shaft Diameter

57.15mm

Cr (Dynamic)

52.4 kN

Cor (Static)

36.2 kN

L (Diameter)

195 mm

J (Pitch)

160 mm

M16

UCFC 212

Circular Flange

Shaft Diameter

60.0mm

Cr (Dynamic)

52.4 kN

Cor (Static)

36.2 kN

L (Diameter)

195 mm

J (Pitch)

160 mm

M16

UCFC 212-38

Circular Flange

Shaft Diameter

60.32mm

Cr (Dynamic)

52.4 kN

Cor (Static)

36.2 kN

L (Diameter)

195 mm

J (Pitch)

160 mm

M16

UCFC 212-39

Circular Flange

Shaft Diameter

61.91mm

Cr (Dynamic)

52.4 kN

Cor (Static)

36.2 kN

L (Diameter)

195 mm

J (Pitch)

160 mm

M16

UCFC 213-40

Circular Flange

Shaft Diameter

63.5mm

Cr (Dynamic)

57.2 kN

Cor (Static)

40.1 kN

L (Diameter)

205 mm

J (Pitch)

170 mm

M16

UCFC 213

Circular Flange

Shaft Diameter

65.0mm

Cr (Dynamic)

57.2 kN

Cor (Static)

40.1 kN

L (Diameter)

205 mm

J (Pitch)

170 mm

M16

UCFC 214-44

Circular Flange

Shaft Diameter

69.85mm

Cr (Dynamic)

62.2 kN

Cor (Static)

44.1 kN

L (Diameter)

215 mm

J (Pitch)

177 mm

M16

UCFC 214

Circular Flange

Shaft Diameter

70.0mm

Cr (Dynamic)

62.2 kN

Cor (Static)

44.1 kN

L (Diameter)

215 mm

J (Pitch)

177 mm

M16

UCFC 215-47

Circular Flange

Shaft Diameter

74.61mm

Cr (Dynamic)

67.4 kN

Cor (Static)

48.3 kN

L (Diameter)

220 mm

J (Pitch)

184 mm

M16

UCFC 215

Circular Flange

Shaft Diameter

75.0mm

Cr (Dynamic)

67.4 kN

Cor (Static)

48.3 kN

L (Diameter)

220 mm

J (Pitch)

184 mm

M16

UCFC 215-48

Circular Flange

Shaft Diameter

76.2mm

Cr (Dynamic)

67.4 kN

Cor (Static)

48.3 kN

L (Diameter)

220 mm

J (Pitch)

184 mm

M16

UCFC 216-50

Circular Flange

Shaft Diameter

79.37mm

Cr (Dynamic)

72.7 kN

Cor (Static)

53 kN

L (Diameter)

240 mm

J (Pitch)

200 mm

M20

UCFC 216

Circular Flange

Shaft Diameter

80.0mm

Cr (Dynamic)

72.7 kN

Cor (Static)

53 kN

L (Diameter)

240 mm

J (Pitch)

200 mm

M20

UCFC 217-52

Circular Flange

Shaft Diameter

82.55mm

Cr (Dynamic)

84 kN

Cor (Static)

61.9 kN

L (Diameter)

250 mm

J (Pitch)

208 mm

M20

UCFC 217

Circular Flange

Shaft Diameter

85.0mm

Cr (Dynamic)

84 kN

Cor (Static)

61.9 kN

L (Diameter)

250 mm

J (Pitch)

208 mm

M20

UCFC 218-56

Circular Flange

Shaft Diameter

88.9mm

Cr (Dynamic)

96.1 kN

Cor (Static)

71.5 kN

L (Diameter)

265 mm

J (Pitch)

220 mm

M20

UCFC 218

Circular Flange

Shaft Diameter

90.0mm

Cr (Dynamic)

96.1 kN

Cor (Static)

71.5 kN

L (Diameter)

265 mm

J (Pitch)

220 mm

M20
