SHAFT TENSIONING

UCT Series

Take-up type unit engineered for precise shaft distance adjustment and belt tensioning. Optimized for conveyor systems and advanced material handling equipment.

Technical Specs Request CAD Data

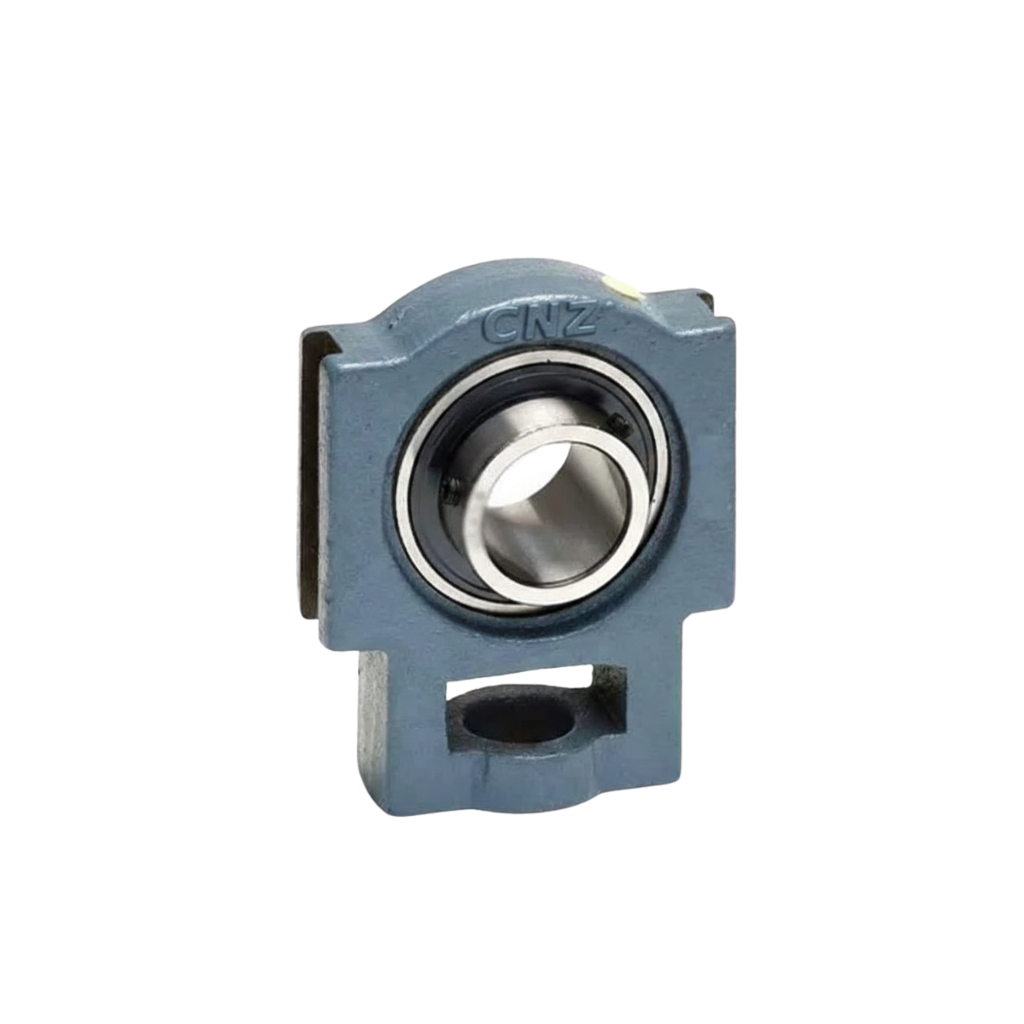

UCT Series Render

DIMENSIONAL REFERENCE

UCT Series Schematic

Standard take-up unit dimensional layout for UCT units. Reference for slide distance, slot width, and tensioning clearance.

UCT Series Dimensional Schematic

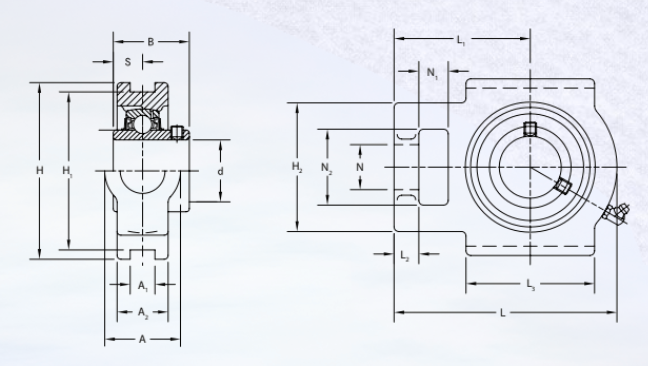

FIG. 1 — UCT SERIES TAKE-UP UNIT DIMENSIONAL DRAWING | All dimensions subject to model specification

TECHNICAL SPECIFICATIONS

Full Structural Data

Comprehensive engineering specifications for the UCT Series take-up units.

UCT201

Take-Up Unit

Shaft Diameter

12 mm

H	89
H1	76
H2	51
L	94
L1 (Slide)	61
L2	10
L3	51
A	32
A1	12
A2	21
N (Slot)	19
N1	16
N2	32
S	12.7
B	31

UCT201-8

Take-Up Unit

Shaft Diameter

12.7 mm

H	89
H1	76
H2	51
L	94
L1 (Slide)	61
L2	10
L3	51
A	32
A1	12
A2	21
N (Slot)	19
N1	16
N2	32
S	12.7
B	31

UCT202

Take-Up Unit

Shaft Diameter

15 mm

H	89
H1	76
H2	51
L	94
L1 (Slide)	61
L2	10
L3	51
A	32
A1	12
A2	21
N (Slot)	19
N1	16
N2	32
S	12.7
B	31

UCT202-10

Take-Up Unit

Shaft Diameter

15.87 mm

H	89
H1	76
H2	51
L	94
L1 (Slide)	61
L2	10
L3	51
A	32
A1	12
A2	21
N (Slot)	19
N1	16
N2	32
S	12.7
B	31

UCT203

Take-Up Unit

Shaft Diameter

17 mm

H	89
H1	76
H2	51
L	94
L1 (Slide)	61
L2	10
L3	51
A	32
A1	12
A2	21
N (Slot)	19
N1	16
N2	32
S	12.7
B	31

UCT204-12

Take-Up Unit

Shaft Diameter

19.05 mm

H	89
H1	76
H2	51
L	94
L1 (Slide)	61
L2	10
L3	51
A	32
A1	12
A2	21
N (Slot)	19
N1	16
N2	32
S	12.7
B	31

UCT204

Take-Up Unit

Shaft Diameter

20 mm

H	89
H1	76
H2	51
L	94
L1 (Slide)	61
L2	10
L3	51
A	32
A1	12
A2	21
N (Slot)	19
N1	16
N2	32
S	12.7
B	31

UCT205-14

Take-Up Unit

Shaft Diameter

22.22 mm

H	89
H1	76
H2	51
L	97
L1 (Slide)	62
L2	10
L3	51
A	32
A1	12
A2	24
N (Slot)	19
N1	16
N2	33
S	14.3
B	34

UCT205-15

Take-Up Unit

Shaft Diameter

23.81 mm

H	89
H1	76
H2	51
L	97
L1 (Slide)	62
L2	10
L3	51
A	32
A1	12
A2	24
N (Slot)	19
N1	16
N2	33
S	14.3
B	34

UCT205

Take-Up Unit

Shaft Diameter

25 mm

H	89
H1	76
H2	51
L	97
L1 (Slide)	62
L2	10
L3	51
A	32
A1	12
A2	24
N (Slot)	19
N1	16
N2	33
S	14.3
B	34

UCT205-16

Take-Up Unit

Shaft Diameter

25.4 mm

H	89
H1	76
H2	51
L	97
L1 (Slide)	62
L2	10
L3	51
A	32
A1	12
A2	24
N (Slot)	19
N1	16
N2	33
S	14.3
B	34

UCT206-18

Take-Up Unit

Shaft Diameter

28.575 mm

H	102
H1	89
H2	57
L	113
L1 (Slide)	70
L2	10
L3	57
A	37
A1	12
A2	27
N (Slot)	22
N1	16
N2	37
S	15.9
B	38.1

UCT206

Take-Up Unit

Shaft Diameter

30 mm

H	102
H1	89
H2	57
L	113
L1 (Slide)	70
L2	10
L3	57
A	37
A1	12
A2	27
N (Slot)	22
N1	16
N2	37
S	15.9
B	38.1

UCT206-19

Take-Up Unit

Shaft Diameter

30.16 mm

H	102
H1	89
H2	57
L	113
L1 (Slide)	70
L2	10
L3	57
A	37
A1	12
A2	27
N (Slot)	22
N1	16
N2	37
S	15.9
B	38.1

UCT206-20

Take-Up Unit

Shaft Diameter

31.75 mm

H	102
H1	89
H2	57
L	113
L1 (Slide)	70
L2	10
L3	57
A	37
A1	12
A2	27
N (Slot)	22
N1	16
N2	37
S	15.9
B	38.1

UCT207-20

Take-Up Unit

Shaft Diameter

31.75 mm

H	102
H1	89
H2	64
L	129
L1 (Slide)	78
L2	13
L3	64
A	37
A1	12
A2	30
N (Slot)	22
N1	16
N2	37
S	17.5
B	42.9

UCT207-21

Take-Up Unit

Shaft Diameter

33.34 mm

H	102
H1	89
H2	64
L	129
L1 (Slide)	78
L2	13
L3	64
A	37
A1	12
A2	30
N (Slot)	22
N1	16
N2	37
S	17.5
B	42.9

UCT207-22

Take-Up Unit

Shaft Diameter

34.925 mm

H	102
H1	89
H2	64
L	129
L1 (Slide)	78
L2	13
L3	64
A	37
A1	12
A2	30
N (Slot)	22
N1	16
N2	37
S	17.5
B	42.9

UCT207

Take-Up Unit

Shaft Diameter

35 mm

H	102
H1	89
H2	64
L	129
L1 (Slide)	78
L2	13
L3	64
A	37
A1	12
A2	30
N (Slot)	22
N1	16
N2	37
S	17.5
B	42.9

UCT207-23

Take-Up Unit

Shaft Diameter

36.51 mm

H	102
H1	89
H2	64
L	129
L1 (Slide)	78
L2	13
L3	64
A	37
A1	12
A2	30
N (Slot)	22
N1	16
N2	37
S	17.5
B	42.9

UCT208-24

Take-Up Unit

Shaft Diameter

38.1 mm

H	114
H1	102
H2	83
L	144
L1 (Slide)	88
L2	16
L3	83
A	49
A1	16
A2	33
N (Slot)	29
N1	20
N2	49
S	19
B	49.2

UCT208-25

Take-Up Unit

Shaft Diameter

39.69 mm

H	114
H1	102
H2	83
L	144
L1 (Slide)	88
L2	16
L3	83
A	49
A1	16
A2	33
N (Slot)	29
N1	20
N2	49
S	19
B	49.2

UCT208

Take-Up Unit

Shaft Diameter

40 mm

H	114
H1	102
H2	83
L	144
L1 (Slide)	88
L2	16
L3	83
A	49
A1	16
A2	33
N (Slot)	29
N1	20
N2	49
S	19
B	49.2

UCT209-26

Take-Up Unit

Shaft Diameter

41.275 mm

H	117
H1	102
H2	83
L	144
L1 (Slide)	87
L2	16
L3	83
A	49
A1	16
A2	35
N (Slot)	29
N1	20
N2	50
S	19
B	49.2

UCT209-27

Take-Up Unit

Shaft Diameter

42.86 mm

H	117
H1	102
H2	83
L	144
L1 (Slide)	87
L2	16
L3	83
A	49
A1	16
A2	35
N (Slot)	29
N1	20
N2	50
S	19
B	49.2

UCT209-28

Take-Up Unit

Shaft Diameter

44.45 mm

H	117
H1	102
H2	83
L	144
L1 (Slide)	87
L2	16
L3	83
A	49
A1	16
A2	35
N (Slot)	29
N1	20
N2	50
S	19
B	49.2

UT209

Take-Up Unit

Shaft Diameter

45 mm

H	117
H1	102
H2	83
L	144
L1 (Slide)	87
L2	16
L3	83
A	49
A1	16
A2	35
N (Slot)	29
N1	20
N2	50
S	19
B	49.2

UCT210-30

Take-Up Unit

Shaft Diameter

47.62 mm

H	117
H1	102
H2	83
L	150
L1 (Slide)	90
L2	16
L3	86
A	49
A1	16
A2	37
N (Slot)	29
N1	19
N2	49
S	19
B	51.6

UCT210-31

Take-Up Unit

Shaft Diameter

49.21 mm

H	117
H1	102
H2	83
L	150
L1 (Slide)	90
L2	16
L3	86
A	49
A1	16
A2	37
N (Slot)	29
N1	19
N2	49
S	19
B	51.6

UCT210

Take-Up Unit

Shaft Diameter

50 mm

H	117
H1	102
H2	83
L	150
L1 (Slide)	90
L2	16
L3	86
A	49
A1	16
A2	37
N (Slot)	29
N1	19
N2	49
S	19
B	51.6

UCT210-32

Take-Up Unit

Shaft Diameter

50.8 mm

H	117
H1	102
H2	83
L	150
L1 (Slide)	90
L2	16
L3	86
A	49
A1	16
A2	37
N (Slot)	29
N1	19
N2	49
S	19
B	51.6

UCT211-32

Take-Up Unit

Shaft Diameter

50.8 mm

H	146
H1	130
H2	102
L	171
L1 (Slide)	106
L2	19
L3	95
A	65
A1	22
A2	37
N (Slot)	35
N1	25
N2	65
S	22.2
B	55.6

UCT211-34

Take-Up Unit

Shaft Diameter

53.97 mm

H	146
H1	130
H2	102
L	171
L1 (Slide)	106
L2	19
L3	95
A	65
A1	22
A2	37
N (Slot)	35
N1	25
N2	65
S	22.2
B	55.6

UCT211

Take-Up Unit

Shaft Diameter

55 mm

H	146
H1	130
H2	102
L	171
L1 (Slide)	106
L2	19
L3	95
A	65
A1	22
A2	37
N (Slot)	35
N1	25
N2	65
S	22.2
B	55.6

UCT211-35

Take-Up Unit

Shaft Diameter

55.56 mm

H	146
H1	130
H2	102
L	171
L1 (Slide)	106
L2	19
L3	95
A	65
A1	22
A2	37
N (Slot)	35
N1	25
N2	65
S	22.2
B	55.6

UCT212-36

Take-Up Unit

Shaft Diameter

57.15 mm

H	146
H1	130
H2	102
L	194
L1 (Slide)	119
L2	19
L3	102
A	64
A1	22
A2	43
N (Slot)	35
N1	32
N2	64
S	25.4
B	65.1

UCT212

Take-Up Unit

Shaft Diameter

60 mm

H	146
H1	130
H2	102
L	194
L1 (Slide)	119
L2	19
L3	102
A	64
A1	22
A2	43
N (Slot)	35
N1	32
N2	64
S	25.4
B	65.1

UCT212-38

Take-Up Unit

Shaft Diameter

60.32 mm

H	146
H1	130
H2	102
L	194
L1 (Slide)	119
L2	19
L3	102
A	64
A1	22
A2	43
N (Slot)	35
N1	32
N2	64
S	25.4
B	65.1

UCT212-39

Take-Up Unit

Shaft Diameter

61.91 mm

H	146
H1	130
H2	102
L	194
L1 (Slide)	119
L2	19
L3	102
A	64
A1	22
A2	43
N (Slot)	35
N1	32
N2	64
S	25.4
B	65.1

UCT213-40

Take-Up Unit

Shaft Diameter

63.5 mm

H	167
H1	151
H2	111
L	223
L1 (Slide)	137
L2	20
L3	121
A	71
A1	26.47
A2	40
N (Slot)	41
N1	34
N2	72
S	25.4
B	65.1

UCT213

Take-Up Unit

Shaft Diameter

65 mm

H	167
H1	151
H2	111
L	223
L1 (Slide)	137
L2	20
L3	121
A	71
A1	26.47
A2	40
N (Slot)	41
N1	34
N2	72
S	25.4
B	65.1

UCT214-44

Take-Up Unit

Shaft Diameter

69.85 mm

H	168
H1	151
H2	111
L	226
L1 (Slide)	136
L2	21
L3	121
A	71
A1	26
A2	47
N (Slot)	41
N1	33
N2	71
S	30.2
B	74.6

UCT214

Take-Up Unit

Shaft Diameter

70 mm

H	168
H1	151
H2	111
L	226
L1 (Slide)	136
L2	21
L3	121
A	71
A1	26
A2	47
N (Slot)	41
N1	33
N2	71
S	30.2
B	74.6

UCT215-47

Take-Up Unit

Shaft Diameter

74.61 mm

H	167
H1	151
H2	111
L	232
L1 (Slide)	140
L2	21
L3	121
A	70
A1	26
A2	48
N (Slot)	41
N1	32
N2	70
S	33.3
B	77.8

UCT215

Take-Up Unit

Shaft Diameter

75 mm

H	167
H1	151
H2	111
L	232
L1 (Slide)	140
L2	21
L3	121
A	70
A1	26
A2	48
N (Slot)	41
N1	32
N2	70
S	33.3
B	77.8

UCT215-48

Take-Up Unit

Shaft Diameter

76.2 mm

H	167
H1	151
H2	111
L	232
L1 (Slide)	140
L2	21
L3	121
A	70
A1	26
A2	48
N (Slot)	41
N1	32
N2	70
S	33.3
B	77.8

UCT216-50

Take-Up Unit

Shaft Diameter

79.38 mm

H	184
H1	165
H2	111
L	235
L1 (Slide)	140
L2	21
L3	121
A	70
A1	26
A2	51
N (Slot)	41
N1	32
N2	70
S	33.3
B	82.6

UCT216

Take-Up Unit

Shaft Diameter

80 mm

H	184
H1	165
H2	111
L	235
L1 (Slide)	140
L2	21
L3	121
A	70
A1	26
A2	51
N (Slot)	41
N1	32
N2	70
S	33.3
B	82.6

UCT217-52

Take-Up Unit

Shaft Diameter

82.55 mm

H	198
H1	173
H2	124
L	260
L1 (Slide)	162
L2	29
L3	157
A	73
A1	30
A2	54
N (Slot)	48
N1	38
N2	73
S	34.1
B	85.7

UCT217

Take-Up Unit

Shaft Diameter

85 mm

H	198
H1	173
H2	124
L	260
L1 (Slide)	162
L2	29
L3	157
A	73
A1	30
A2	54
N (Slot)	48
N1	38
N2	73
S	34.1
B	85.7

Slide

UCT 201-8

Take-up Unit

Shaft Diameter

12.7mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.7 kN

L (Length)

94 mm

H (Height)

89 mm

Slide

UCT 202

Take-up Unit

Shaft Diameter

15.0mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.7 kN

L (Length)

94 mm

H (Height)

89 mm

Slide

UCT 202-10

Take-up Unit

Shaft Diameter

15.87mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.7 kN

L (Length)

94 mm

H (Height)

89 mm

Slide

UCT 203

Take-up Unit

Shaft Diameter

17.0mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.7 kN

L (Length)

94 mm

H (Height)

89 mm

Slide

UCT 204-12

Take-up Unit

Shaft Diameter

19.05mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.7 kN

L (Length)

94 mm

H (Height)

89 mm

Slide

UCT 204

Take-up Unit

Shaft Diameter

20.0mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.7 kN

L (Length)

94 mm

H (Height)

89 mm

Slide

UCT 205-14

Take-up Unit

Shaft Diameter

22.22mm

Cr (Dynamic)

14.0 kN

Cor (Static)

7.9 kN

L (Length)

97 mm

H (Height)

89 mm

Slide

UCT 205-15

Take-up Unit

Shaft Diameter

23.81mm

Cr (Dynamic)

14.0 kN

Cor (Static)

7.9 kN

L (Length)

97 mm

H (Height)

89 mm

Slide

UCT 205

Take-up Unit

Shaft Diameter

25.0mm

Cr (Dynamic)

14.0 kN

Cor (Static)

7.9 kN

L (Length)

97 mm

H (Height)

89 mm

Slide

UCT 205-16

Take-up Unit

Shaft Diameter

25.4mm

Cr (Dynamic)

14.0 kN

Cor (Static)

7.9 kN

L (Length)

97 mm

H (Height)

89 mm

Slide

UCT 206-18

Take-up Unit

Shaft Diameter

28.575mm

Cr (Dynamic)

19.5 kN

Cor (Static)

11.3 kN

L (Length)

113 mm

H (Height)

102 mm

Slide

UCT 206

Take-up Unit

Shaft Diameter

30.0mm

Cr (Dynamic)

19.5 kN

Cor (Static)

11.3 kN

L (Length)

113 mm

H (Height)

102 mm

Slide

UCT 206-19

Take-up Unit

Shaft Diameter

30.16mm

Cr (Dynamic)

19.5 kN

Cor (Static)

11.3 kN

L (Length)

113 mm

H (Height)

102 mm

Slide

UCT 206-20

Take-up Unit

Shaft Diameter

31.75mm

Cr (Dynamic)

19.5 kN

Cor (Static)

11.3 kN

L (Length)

113 mm

H (Height)

102 mm

Slide

UCT 207-20

Take-up Unit

Shaft Diameter

31.75mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

L (Length)

129 mm

H (Height)

102 mm

Slide

UCT 207-21

Take-up Unit

Shaft Diameter

33.34mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

L (Length)

129 mm

H (Height)

102 mm

Slide

UCT 207-22

Take-up Unit

Shaft Diameter

34.925mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

L (Length)

129 mm

H (Height)

102 mm

Slide

UCT 207

Take-up Unit

Shaft Diameter

35.0mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

L (Length)

129 mm

H (Height)

102 mm

Slide

UCT 207-23

Take-up Unit

Shaft Diameter

36.51mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

L (Length)

129 mm

H (Height)

102 mm

Slide

UCT 208-24

Take-up Unit

Shaft Diameter

38.1mm

Cr (Dynamic)

29.1 kN

Cor (Static)

17.8 kN

L (Length)

144 mm

H (Height)

114 mm

Slide

UCT 208-25

Take-up Unit

Shaft Diameter

39.69mm

Cr (Dynamic)

29.1 kN

Cor (Static)

17.8 kN

L (Length)

144 mm

H (Height)

114 mm

Slide

UCT 208

Take-up Unit

Shaft Diameter

40.0mm

Cr (Dynamic)

29.1 kN

Cor (Static)

17.8 kN

L (Length)

144 mm

H (Height)

114 mm

Slide

UCT 209-26

Take-up Unit

Shaft Diameter

41.275mm

Cr (Dynamic)

34.1 kN

Cor (Static)

21.3 kN

L (Length)

144 mm

H (Height)

117 mm

Slide

UCT 209-27

Take-up Unit

Shaft Diameter

42.86mm

Cr (Dynamic)

34.1 kN

Cor (Static)

21.3 kN

L (Length)

144 mm

H (Height)

117 mm

Slide

UCT 209-28

Take-up Unit

Shaft Diameter

44.45mm

Cr (Dynamic)

34.1 kN

Cor (Static)

21.3 kN

L (Length)

144 mm

H (Height)

117 mm

Slide

UT 209

Take-up Unit

Shaft Diameter

45.0mm

Cr (Dynamic)

34.1 kN

Cor (Static)

21.3 kN

L (Length)

144 mm

H (Height)

117 mm

Slide

UCT 210-30

Take-up Unit

Shaft Diameter

47.62mm

Cr (Dynamic)

35.1 kN

Cor (Static)

23.3 kN

L (Length)

150 mm

H (Height)

117 mm

Slide

UCT 210-31

Take-up Unit

Shaft Diameter

49.21mm

Cr (Dynamic)

35.1 kN

Cor (Static)

23.3 kN

L (Length)

150 mm

H (Height)

117 mm

Slide

UCT 210

Take-up Unit

Shaft Diameter

50.0mm

Cr (Dynamic)

35.1 kN

Cor (Static)

23.3 kN

L (Length)

150 mm

H (Height)

117 mm

Slide

UCT 210-32

Take-up Unit

Shaft Diameter

50.8mm

Cr (Dynamic)

35.1 kN

Cor (Static)

23.3 kN

L (Length)

150 mm

H (Height)

117 mm

Slide

UCT 211-32

Take-up Unit

Shaft Diameter

50.8mm

Cr (Dynamic)

43.4 kN

Cor (Static)

29.4 kN

L (Length)

171 mm

H (Height)

146 mm

Slide

UCT 211-34

Take-up Unit

Shaft Diameter

53.97mm

Cr (Dynamic)

43.4 kN

Cor (Static)

29.4 kN

L (Length)

171 mm

H (Height)

146 mm

Slide

UCT 211

Take-up Unit

Shaft Diameter

55.0mm

Cr (Dynamic)

43.4 kN

Cor (Static)

29.4 kN

L (Length)

171 mm

H (Height)

146 mm

Slide

UCT 211-35

Take-up Unit

Shaft Diameter

55.56mm

Cr (Dynamic)

43.4 kN

Cor (Static)

29.4 kN

L (Length)

171 mm

H (Height)

146 mm

Slide

UCT 212-36

Take-up Unit

Shaft Diameter

57.15mm

Cr (Dynamic)

52.4 kN

Cor (Static)

36.2 kN

L (Length)

194 mm

H (Height)

146 mm

Slide

UCT 212

Take-up Unit

Shaft Diameter

60.0mm

Cr (Dynamic)

52.4 kN

Cor (Static)

36.2 kN

L (Length)

194 mm

H (Height)

146 mm

Slide

UCT 212-38

Take-up Unit

Shaft Diameter

60.32mm

Cr (Dynamic)

52.4 kN

Cor (Static)

36.2 kN

L (Length)

194 mm

H (Height)

146 mm

Slide

UCT 212-39

Take-up Unit

Shaft Diameter

61.91mm

Cr (Dynamic)

52.4 kN

Cor (Static)

36.2 kN

L (Length)

194 mm

H (Height)

146 mm

Slide

UCT 213-40

Take-up Unit

Shaft Diameter

63.5mm

Cr (Dynamic)

57.2 kN

Cor (Static)

40.1 kN

L (Length)

223 mm

H (Height)

167 mm

Slide

UCT 213

Take-up Unit

Shaft Diameter

65.0mm

Cr (Dynamic)

57.2 kN

Cor (Static)

40.1 kN

L (Length)

223 mm

H (Height)

167 mm

Slide

UCT 214-44

Take-up Unit

Shaft Diameter

69.85mm

Cr (Dynamic)

62.2 kN

Cor (Static)

44.1 kN

L (Length)

226 mm

H (Height)

168 mm

Slide

UCT 214

Take-up Unit

Shaft Diameter

70.0mm

Cr (Dynamic)

62.2 kN

Cor (Static)

44.1 kN

L (Length)

226 mm

H (Height)

168 mm

Slide

UCT 215-47

Take-up Unit

Shaft Diameter

74.61mm

Cr (Dynamic)

67.4 kN

Cor (Static)

48.3 kN

L (Length)

232 mm

H (Height)

167 mm

Slide

UCT 215

Take-up Unit

Shaft Diameter

75.0mm

Cr (Dynamic)

67.4 kN

Cor (Static)

48.3 kN

L (Length)

232 mm

H (Height)

167 mm

Slide

UCT 215-48

Take-up Unit

Shaft Diameter

76.2mm

Cr (Dynamic)

67.4 kN

Cor (Static)

48.3 kN

L (Length)

232 mm

H (Height)

167 mm

Slide

UCT 216-50

Take-up Unit

Shaft Diameter

79.38mm

Cr (Dynamic)

72.7 kN

Cor (Static)

53.0 kN

L (Length)

235 mm

H (Height)

184 mm

Slide

UCT 216

Take-up Unit

Shaft Diameter

80.0mm

Cr (Dynamic)

72.7 kN

Cor (Static)

53.0 kN

L (Length)

235 mm

H (Height)

184 mm

Slide

UCT 217-52

Take-up Unit

Shaft Diameter

82.55mm

Cr (Dynamic)

84.0 kN

Cor (Static)

61.9 kN

L (Length)

260 mm

H (Height)

198 mm

Slide

UCT 217

Take-up Unit

Shaft Diameter

85.0mm

Cr (Dynamic)

84.0 kN

Cor (Static)

61.9 kN

L (Length)

260 mm

H (Height)

198 mm

Slide
