PEDESTAL MOUNTING

UCP Series

Standard pedestal-type housing with two-bolt mounting. Engineered for high-load reliability in overhead and side support applications across global industries.

Technical Specs Request CAD Data

UCP Series Render

DIMENSIONAL REFERENCE

UCP Series Schematic

Standard dimensional layout for UCP pillow block units. Reference for installation and structural clearance planning.

UCP Series Dimensional Schematic

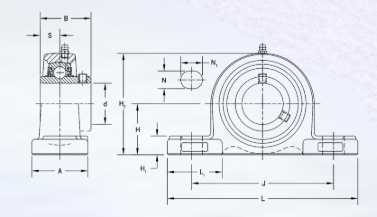

FIG. 1 — UCP SERIES PILLOW BLOCK DIMENSIONAL DRAWING | All dimensions subject to model specification

TECHNICAL SPECIFICATIONS

Full Structural Data

Comprehensive engineering specifications for the UCP Series pedestal units.

UCP201

Pillow Block

Shaft Diameter

12 mm

H	30.2
L	127
L1	36
A	38
H1	16
Pitch (J)	95
H2	60
S	12.7
B	31
N	13
N1	18

UCP201-8

Pillow Block

Shaft Diameter

12.7 mm

H	30.2
L	127
L1	36
A	38
H1	16
Pitch (J)	95
H2	60
S	12.7
B	31
N	13
N1	18

UCP202

Pillow Block

Shaft Diameter

15 mm

H	30.2
L	127
L1	36
A	38
H1	16
Pitch (J)	95
H2	60
S	12.7
B	31
N	13
N1	18

UCP202-10

Pillow Block

Shaft Diameter

15.87 mm

H	30.2
L	127
L1	36
A	38
H1	16
Pitch (J)	95
H2	60
S	12.7
B	31
N	13
N1	18

UCP203

Pillow Block

Shaft Diameter

17 mm

H	30.2
L	127
L1	36
A	38
H1	16
Pitch (J)	95
H2	60
S	12.7
B	31
N	13
N1	18

UCP204-12

Pillow Block

Shaft Diameter

19.05 mm

H	33.3
L	127
L1	36
A	38
H1	16
Pitch (J)	95
H2	65
S	12.7
B	31
N	13
N1	18

UCP204

Pillow Block

Shaft Diameter

20 mm

H	33.3
L	127
L1	36
A	38
H1	16
Pitch (J)	95
H2	65
S	12.7
B	31
N	13
N1	18

UCP205-14

Pillow Block

Shaft Diameter

22.22 mm

H	37
L	140
L1	38
A	38
H1	15
Pitch (J)	105
H2	70
S	14.3
B	34.1
N	13
N1	18

UCP205-15

Pillow Block

Shaft Diameter

23.81 mm

H	37
L	140
L1	38
A	38
H1	15
Pitch (J)	105
H2	70
S	14.3
B	34.1
N	13
N1	18

UCP205

Pillow Block

Shaft Diameter

25 mm

H	37
L	140
L1	38
A	38
H1	15
Pitch (J)	105
H2	70
S	14.3
B	34.1
N	13
N1	18

UCP205-16

Pillow Block

Shaft Diameter

25.4 mm

H	37
L	140
L1	38
A	38
H1	15
Pitch (J)	105
H2	70
S	14.3
B	34.1
N	13
N1	18

UCP206-18

Pillow Block

Shaft Diameter

28.57 mm

H	42.9
L	163
L1	48
A	47
H1	17
Pitch (J)	121
H2	82
S	15.9
B	38.1
N	17
N1	21

UCP206

Pillow Block

Shaft Diameter

30 mm

H	42.9
L	163
L1	48
A	47
H1	17
Pitch (J)	121
H2	82
S	15.9
B	38.1
N	17
N1	21

UCP206-19

Pillow Block

Shaft Diameter

30.16 mm

H	42.9
L	163
L1	48
A	47
H1	17
Pitch (J)	121
H2	82
S	15.9
B	38.1
N	17
N1	21

UCP206-20

Pillow Block

Shaft Diameter

31.75 mm

H	42.9
L	163
L1	48
A	47
H1	17
Pitch (J)	121
H2	82
S	15.9
B	38.1
N	17
N1	21

UCP207-20

Pillow Block

Shaft Diameter

31.75 mm

H	47.6
L	167
L1	47
A	46
H1	18
Pitch (J)	127
H2	93
S	17.5
B	42.9
N	17
N1	21

UCP207-21

Pillow Block

Shaft Diameter

33.33 mm

H	47.6
L	167
L1	47
A	46
H1	18
Pitch (J)	127
H2	93
S	17.5
B	42.9
N	17
N1	21

UCP207-22

Pillow Block

Shaft Diameter

34.92 mm

H	47.6
L	167
L1	47
A	46
H1	18
Pitch (J)	127
H2	93
S	17.5
B	42.9
N	17
N1	21

UCP207

Pillow Block

Shaft Diameter

35 mm

H	47.6
L	167
L1	47
A	46
H1	18
Pitch (J)	127
H2	93
S	17.5
B	42.9
N	17
N1	21

UCP207-23

Pillow Block

Shaft Diameter

36.51 mm

H	47.6
L	167
L1	47
A	46
H1	18
Pitch (J)	127
H2	93
S	17.5
B	42.9
N	17
N1	21

UCP208-24

Pillow Block

Shaft Diameter

38.1 mm

H	49.2
L	179
L1	53
A	54
H1	18
Pitch (J)	137
H2	98
S	19
B	49.2
N	17
N1	21

UCP208-25

Pillow Block

Shaft Diameter

39.69 mm

H	49.2
L	179
L1	53
A	54
H1	18
Pitch (J)	137
H2	98
S	19
B	49.2
N	17
N1	21

UCP208

Pillow Block

Shaft Diameter

40 mm

H	49.2
L	179
L1	53
A	54
H1	18
Pitch (J)	137
H2	98
S	19
B	49.2
N	17
N1	21

UCP209-26

Pillow Block

Shaft Diameter

41.27 mm

H	54
L	189
L1	55
A	53
H1	21
Pitch (J)	146
H2	105
S	19
B	49.2
N	17
N1	21

UCP209-27

Pillow Block

Shaft Diameter

42.86 mm

H	54
L	189
L1	55
A	53
H1	21
Pitch (J)	146
H2	105
S	19
B	49.2
N	17
N1	21

UCP209-28

Pillow Block

Shaft Diameter

44.45 mm

H	54
L	189
L1	55
A	53
H1	21
Pitch (J)	146
H2	105
S	19
B	49.2
N	17
N1	21

UCP209

Pillow Block

Shaft Diameter

45 mm

H	54
L	189
L1	55
A	53
H1	21
Pitch (J)	146
H2	105
S	19
B	49.2
N	17
N1	21

UCP210-30

Pillow Block

Shaft Diameter

47.62 mm

H	57.2
L	206
L1	60
A	60
H1	21
Pitch (J)	159
H2	113
S	19
B	51.6
N	20
N1	22

UCP210-31

Pillow Block

Shaft Diameter

49.21 mm

H	57.2
L	206
L1	60
A	60
H1	21
Pitch (J)	159
H2	113
S	19
B	51.6
N	20
N1	22

UCP210

Pillow Block

Shaft Diameter

50 mm

H	57.2
L	206
L1	60
A	60
H1	21
Pitch (J)	159
H2	113
S	19
B	51.6
N	20
N1	22

UCP210-32

Pillow Block

Shaft Diameter

50.8 mm

H	57.2
L	206
L1	60
A	60
H1	21
Pitch (J)	159
H2	113
S	19
B	51.6
N	20
N1	22

UCP211-32

Pillow Block

Shaft Diameter

50.8 mm

H	63.5
L	218
L1	65
A	60
H1	23
Pitch (J)	171
H2	124
S	22.2
B	55.6
N	20
N1	25

UCP211-34

Pillow Block

Shaft Diameter

53.97 mm

H	63.5
L	218
L1	65
A	60
H1	23
Pitch (J)	171
H2	124
S	22.2
B	55.6
N	20
N1	25

UCP211

Pillow Block

Shaft Diameter

55 mm

H	63.5
L	218
L1	65
A	60
H1	23
Pitch (J)	171
H2	124
S	22.2
B	55.6
N	20
N1	25

UCP211-35

Pillow Block

Shaft Diameter

55.56 mm

H	63.5
L	218
L1	65
A	60
H1	23
Pitch (J)	171
H2	124
S	22.2
B	55.6
N	20
N1	25

UCP212-36

Pillow Block

Shaft Diameter

57.15 mm

H	69.8
L	238
L1	73
A	70
H1	26
Pitch (J)	184
H2	136
S	25.4
B	65.1
N	20
N1	25

UCP212

Pillow Block

Shaft Diameter

60 mm

H	69.8
L	238
L1	73
A	70
H1	26
Pitch (J)	184
H2	136
S	25.4
B	65.1
N	20
N1	25

UCP212-38

Pillow Block

Shaft Diameter

60.32 mm

H	69.8
L	238
L1	73
A	70
H1	26
Pitch (J)	184
H2	136
S	25.4
B	65.1
N	20
N1	25

UCP212-39

Pillow Block

Shaft Diameter

61.91 mm

H	69.8
L	238
L1	73
A	70
H1	26
Pitch (J)	184
H2	136
S	25.4
B	65.1
N	20
N1	25

UCP213-40

Pillow Block

Shaft Diameter

63.5 mm

H	76.2
L	263
L1	78
A	70
H1	27
Pitch (J)	203
H2	149
S	25.4
B	65.1
N	25
N1	30

UCP213

Pillow Block

Shaft Diameter

65 mm

H	76.2
L	263
L1	78
A	70
H1	27
Pitch (J)	203
H2	149
S	25.4
B	65.1
N	25
N1	30

UCP214-44

Pillow Block

Shaft Diameter

69.85 mm

H	79.4
L	266
L1	75
A	72
H1	27
Pitch (J)	210
H2	157
S	30.2
B	74.6
N	25
N1	30

UCP214

Pillow Block

Shaft Diameter

70 mm

H	79.4
L	266
L1	75
A	72
H1	27
Pitch (J)	210
H2	157
S	30.2
B	74.6
N	25
N1	30

UCP215-47

Pillow Block

Shaft Diameter

74.61 mm

H	82
L	274
L1	78
A	74
H1	28
Pitch (J)	217
H2	162
S	33.3
B	77.8
N	25
N1	30

UCP215

Pillow Block

Shaft Diameter

75 mm

H	82
L	274
L1	78
A	74
H1	28
Pitch (J)	217
H2	162
S	33.3
B	77.8
N	25
N1	30

UCP215-48

Pillow Block

Shaft Diameter

76.2 mm

H	82
L	274
L1	78
A	74
H1	28
Pitch (J)	217
H2	162
S	33.3
B	77.8
N	25
N1	30

UCP216-50

Pillow Block

Shaft Diameter

79.37 mm

H	89
L	292
L1	83
A	78
H1	30
Pitch (J)	232
H2	174
S	33.3
B	82.6
N	25
N1	31

UCP216

Pillow Block

Shaft Diameter

80 mm

H	89
L	292
L1	83
A	78
H1	30
Pitch (J)	232
H2	174
S	33.3
B	82.6
N	25
N1	31

UCP217-52

Pillow Block

Shaft Diameter

82.55 mm

H	95
L	312
L1	87
A	83
H1	34
Pitch (J)	247
H2	186
S	34.1
B	85.7
N	25
N1	32

UCP217

Pillow Block

Shaft Diameter

85 mm

H	95
L	312
L1	87
A	83
H1	34
Pitch (J)	247
H2	186
S	34.1
B	85.7
N	25
N1	32

UCP218-56

Pillow Block

Shaft Diameter

88.9 mm

H	101.6
L	327
L1	94
A	88
H1	33
Pitch (J)	262
H2	198
S	39.7
B	96
N	27
N1	40

UCP218

Pillow Block

Shaft Diameter

90 mm

H	101.6
L	327
L1	94
A	88
H1	33
Pitch (J)	262
H2	198
S	39.7
B	96
N	27
N1	40
