TWO-BOLT FLANGE

UCFL Series

Oval flange unit with compact two-bolt mounting. Engineered for applications with limited lateral space or where a smaller, vertical footprint is required.

Technical Specs Request CAD Data

UCFL Series Render

DIMENSIONAL REFERENCE

UCFL Series Schematic

Standard oval flange dimensional layout for UCFL units. Reference for compact mounting and clearance planning.

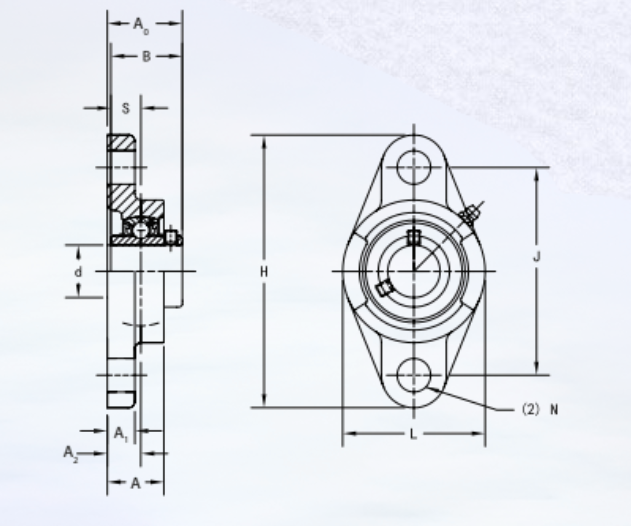

UCFL Series Dimensional Schematic

FIG. 1 — UCFL SERIES OVAL FLANGE DIMENSIONAL DRAWING | All dimensions subject to model specification

Technical Specifications

Full structural data for UCFL Series oval units.

UCFL201

Oval Flange

Shaft Diameter

12 mm

Height (H)	113
Pitch (J)	90
A1	11
A	25.5
A0	33.3
Length (L)	60
A2	15
S	12.7
B	31
N	12

UCFL201-8

Oval Flange

Shaft Diameter

12.7 mm

Height (H)	113
Pitch (J)	90
A1	11
A	25.5
A0	33.3
Length (L)	60
A2	15
S	12.7
B	31
N	12

UCFL202

Oval Flange

Shaft Diameter

15 mm

Height (H)	113
Pitch (J)	90
A1	11
A	25.5
A0	33.3
Length (L)	60
A2	15
S	12.7
B	31
N	12

UCFL202-10

Oval Flange

Shaft Diameter

15.87 mm

Height (H)	113
Pitch (J)	90
A1	11
A	25.5
A0	33.3
Length (L)	60
A2	15
S	12.7
B	31
N	12

UCFL203

Oval Flange

Shaft Diameter

17 mm

Height (H)	113
Pitch (J)	90
A1	11
A	25.5
A0	33.3
Length (L)	60
A2	15
S	12.7
B	31
N	12

UCFL204-12

Oval Flange

Shaft Diameter

19.5 mm

Height (H)	113
Pitch (J)	90
A1	11
A	25.5
A0	33.3
Length (L)	60
A2	15
S	12.7
B	31
N	12

UCFL204

Oval Flange

Shaft Diameter

20 mm

Height (H)	113
Pitch (J)	90
A1	11
A	25.5
A0	33.3
Length (L)	60
A2	15
S	12.7
B	31
N	12

UCFL205-14

Oval Flange

Shaft Diameter

22.225 mm

Height (H)	130
Pitch (J)	99
A1	13
A	27
A0	35.8
Length (L)	68
A2	16
S	14.3
B	34.1
N	16

UCFL205-15

Oval Flange

Shaft Diameter

23.81 mm

Height (H)	130
Pitch (J)	99
A1	13
A	27
A0	35.8
Length (L)	68
A2	16
S	14.3
B	34.1
N	16

UCFL205

Oval Flange

Shaft Diameter

25 mm

Height (H)	130
Pitch (J)	99
A1	13
A	27
A0	35.8
Length (L)	68
A2	16
S	14.3
B	34.1
N	16

UCFL205-16

Oval Flange

Shaft Diameter

25.4 mm

Height (H)	130
Pitch (J)	99
A1	13
A	27
A0	35.8
Length (L)	68
A2	16
S	14.3
B	34.1
N	16

UCFL206-18

Oval Flange

Shaft Diameter

28.57 mm

Height (H)	148
Pitch (J)	117
A1	13
A	31
A0	40.2
Length (L)	80
A2	18
S	15.9
B	38.1
N	16

UCFL206-18

Oval Flange

Shaft Diameter

30 mm

Height (H)	148
Pitch (J)	117
A1	13
A	31
A0	40.2
Length (L)	80
A2	18
S	15.9
B	38.1
N	16

UCFL206-19

Oval Flange

Shaft Diameter

30.16 mm

Height (H)	148
Pitch (J)	117
A1	13
A	31
A0	40.2
Length (L)	80
A2	18
S	15.9
B	38.1
N	16

UCFL206-20

Oval Flange

Shaft Diameter

31.75 mm

Height (H)	148
Pitch (J)	117
A1	13
A	31
A0	40.2
Length (L)	80
A2	18
S	15.9
B	38.1
N	16

UCFL207-20

Oval Flange

Shaft Diameter

31.75 mm

Height (H)	161
Pitch (J)	130
A1	14
A	34
A0	44.4
Length (L)	90
A2	19
S	17.5
B	42.9
N	16

UCFL207-21

Oval Flange

Shaft Diameter

33.33 mm

Height (H)	161
Pitch (J)	130
A1	14
A	34
A0	44.4
Length (L)	90
A2	19
S	17.5
B	42.9
N	16

UCFL207-22

Oval Flange

Shaft Diameter

34.93 mm

Height (H)	161
Pitch (J)	130
A1	14
A	34
A0	44.4
Length (L)	90
A2	19
S	17.5
B	42.9
N	16

UCFL207

Oval Flange

Shaft Diameter

35 mm

Height (H)	161
Pitch (J)	130
A1	14
A	34
A0	44.4
Length (L)	90
A2	19
S	17.5
B	42.9
N	16

UCFL207-23

Oval Flange

Shaft Diameter

36.51 mm

Height (H)	161
Pitch (J)	130
A1	14
A	34
A0	44.4
Length (L)	90
A2	19
S	17.5
B	42.9
N	16

UCFL208-24

Oval Flange

Shaft Diameter

38.1 mm

Height (H)	175
Pitch (J)	144
A1	14
A	36
A0	51.2
Length (L)	100
A2	21
S	19
B	49.2
N	16

UCFL208-25

Oval Flange

Shaft Diameter

39.68 mm

Height (H)	175
Pitch (J)	144
A1	14
A	36
A0	51.2
Length (L)	100
A2	21
S	19
B	49.2
N	16

UCFL208

Oval Flange

Shaft Diameter

40 mm

Height (H)	175
Pitch (J)	144
A1	14
A	36
A0	51.2
Length (L)	100
A2	21
S	19
B	49.2
N	16

UCFL209-26

Oval Flange

Shaft Diameter

41.27 mm

Height (H)	188
Pitch (J)	148
A1	15
A	38
A0	52.2
Length (L)	108
A2	22
S	19
B	49.2
N	19

UCFL209-27

Oval Flange

Shaft Diameter

42.86 mm

Height (H)	188
Pitch (J)	148
A1	15
A	38
A0	52.2
Length (L)	108
A2	22
S	19
B	49.2
N	19

UCFL209-28

Oval Flange

Shaft Diameter

44.45 mm

Height (H)	188
Pitch (J)	148
A1	15
A	38
A0	52.2
Length (L)	108
A2	22
S	19
B	49.2
N	19

UCFL209

Oval Flange

Shaft Diameter

45 mm

Height (H)	188
Pitch (J)	148
A1	15
A	38
A0	52.2
Length (L)	108
A2	22
S	19
B	49.2
N	19

UCFL210-30

Oval Flange

Shaft Diameter

47.62 mm

Height (H)	197
Pitch (J)	157
A1	15
A	40
A0	54.6
Length (L)	115
A2	22
S	19
B	51.6
N	19

UCFL210-31

Oval Flange

Shaft Diameter

49.21 mm

Height (H)	197
Pitch (J)	157
A1	15
A	40
A0	54.6
Length (L)	115
A2	22
S	19
B	51.6
N	19

UCFL210

Oval Flange

Shaft Diameter

50 mm

Height (H)	197
Pitch (J)	157
A1	15
A	40
A0	54.6
Length (L)	115
A2	22
S	19
B	51.6
N	19

UCFL210-32

Oval Flange

Shaft Diameter

50.8 mm

Height (H)	197
Pitch (J)	157
A1	15
A	40
A0	54.6
Length (L)	115
A2	22
S	19
B	51.6
N	19

UCFL211-32

Oval Flange

Shaft Diameter

50.8 mm

Height (H)	224
Pitch (J)	184
A1	18
A	43
A0	58.4
Length (L)	130
A2	25
S	22.2
B	55.6
N	19

UCFL211-34

Oval Flange

Shaft Diameter

53.97 mm

Height (H)	224
Pitch (J)	184
A1	18
A	43
A0	58.4
Length (L)	130
A2	25
S	22.2
B	55.6
N	19

UCFL211

Oval Flange

Shaft Diameter

55 mm

Height (H)	224
Pitch (J)	184
A1	18
A	43
A0	58.4
Length (L)	130
A2	25
S	22.2
B	55.6
N	19

UCFL211-35

Oval Flange

Shaft Diameter

55.56 mm

Height (H)	224
Pitch (J)	184
A1	18
A	43
A0	58.4
Length (L)	130
A2	25
S	22.2
B	55.6
N	19

UCFL212-36

Oval Flange

Shaft Diameter

57.15 mm

Height (H)	250
Pitch (J)	202
A1	18
A	48
A0	68.7
Length (L)	140
A2	29
S	25.4
B	65.1
N	23

UCFL212

Oval Flange

Shaft Diameter

60 mm

Height (H)	250
Pitch (J)	202
A1	18
A	48
A0	68.7
Length (L)	140
A2	29
S	25.4
B	65.1
N	23

UCFL212-38

Oval Flange

Shaft Diameter

60.32 mm

Height (H)	250
Pitch (J)	202
A1	18
A	48
A0	68.7
Length (L)	140
A2	29
S	25.4
B	65.1
N	23

UCFL212-39

Oval Flange

Shaft Diameter

61.91 mm

Height (H)	250
Pitch (J)	202
A1	18
A	48
A0	68.7
Length (L)	140
A2	29
S	25.4
B	65.1
N	23

UCFL213-40

Oval Flange

Shaft Diameter

63.5 mm

Height (H)	258
Pitch (J)	210
A1	24
A	50
A0	69.7
Length (L)	155
A2	30
S	25.4
B	65.1
N	23

UCFL213

Oval Flange

Shaft Diameter

65 mm

Height (H)	258
Pitch (J)	210
A1	24
A	50
A0	69.7
Length (L)	155
A2	30
S	25.4
B	65.1
N	23

UCFL214-44

Oval Flange

Shaft Diameter

69.85 mm

Height (H)	265
Pitch (J)	216
A1	20
A	54
A0	75.4
Length (L)	160
A2	31
S	30.2
B	74.6
N	23

UCFL214

Oval Flange

Shaft Diameter

70 mm

Height (H)	265
Pitch (J)	216
A1	20
A	54
A0	75.4
Length (L)	160
A2	31
S	30.2
B	74.6
N	23

UCFL215-47

Oval Flange

Shaft Diameter

74.61 mm

Height (H)	275
Pitch (J)	225
A1	20
A	56
A0	78.5
Length (L)	165
A2	34
S	33.3
B	77.8
N	23

UCFL215

Oval Flange

Shaft Diameter

75 mm

Height (H)	275
Pitch (J)	225
A1	20
A	56
A0	78.5
Length (L)	165
A2	34
S	33.3
B	77.8
N	23

UCFL215-48

Oval Flange

Shaft Diameter

76.2 mm

Height (H)	275
Pitch (J)	225
A1	20
A	56
A0	78.5
Length (L)	165
A2	34
S	33.3
B	77.8
N	23

UCFL216-50

Oval Flange

Shaft Diameter

79.37 mm

Height (H)	290
Pitch (J)	233
A1	20
A	58
A0	83.3
Length (L)	180
A2	34
S	33.3
B	82.6
N	25

UCFL216

Oval Flange

Shaft Diameter

80 mm

Height (H)	290
Pitch (J)	233
A1	20
A	58
A0	83.3
Length (L)	180
A2	34
S	33.3
B	82.6
N	25

UCFL217-52

Oval Flange

Shaft Diameter

82.55 mm

Height (H)	305
Pitch (J)	248
A1	22
A	63
A0	87.6
Length (L)	190
A2	36
S	34.1
B	85.7
N	25

UCFL217-52

Oval Flange

Shaft Diameter

85 mm

Height (H)	305
Pitch (J)	248
A1	22
A	63
A0	87.6
Length (L)	190
A2	36
S	34.1
B	85.7
N	25

UCFL218-56

Oval Flange

Shaft Diameter

88.9 mm

Height (H)	320
Pitch (J)	265
A1	23
A	68
A0	96.3
Length (L)	205
A2	40
S	39.7
B	96
N	25

UCFL218

Oval Flange

Shaft Diameter

90 mm

Height (H)	320
Pitch (J)	265
A1	23
A	68
A0	96.3
Length (L)	205
A2	40
S	39.7
B	96
N	25

M10

UCFL 201-8

Oval Flange

Shaft Diameter

12.7mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.70 kN

J (Pitch)

90.0 mm

H (Height)

113.0 mm

M10

UCFL 202

Oval Flange

Shaft Diameter

15.0mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.70 kN

J (Pitch)

90.0 mm

H (Height)

113.0 mm

M10

UCFL 202-10

Oval Flange

Shaft Diameter

15.9mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.70 kN

J (Pitch)

90.0 mm

H (Height)

113.0 mm

M10

UCFL 203

Oval Flange

Shaft Diameter

17.0mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.70 kN

J (Pitch)

90.0 mm

H (Height)

113.0 mm

M10

UCFL 204-12

Oval Flange

Shaft Diameter

19.1mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.70 kN

J (Pitch)

90.0 mm

H (Height)

113.0 mm

M10

UCFL 204

Oval Flange

Shaft Diameter

20.0mm

Cr (Dynamic)

12.8 kN

Cor (Static)

6.70 kN

J (Pitch)

90.0 mm

H (Height)

113.0 mm

M10

UCFL 205-14

Oval Flange

Shaft Diameter

22.2mm

Cr (Dynamic)

14.0 kN

Cor (Static)

7.90 kN

J (Pitch)

99.0 mm

H (Height)

130.0 mm

M12

UCFL 205-15

Oval Flange

Shaft Diameter

23.8mm

Cr (Dynamic)

14.0 kN

Cor (Static)

7.90 kN

J (Pitch)

99.0 mm

H (Height)

130.0 mm

M12

UCFL 205

Oval Flange

Shaft Diameter

25.0mm

Cr (Dynamic)

14.0 kN

Cor (Static)

7.90 kN

J (Pitch)

99.0 mm

H (Height)

130.0 mm

M12

UCFL 205-16

Oval Flange

Shaft Diameter

25.4mm

Cr (Dynamic)

14.0 kN

Cor (Static)

7.90 kN

J (Pitch)

99.0 mm

H (Height)

130.0 mm

M12

UCFL 206-18

Oval Flange

Shaft Diameter

28.6mm

Cr (Dynamic)

19.5 kN

Cor (Static)

11.3 kN

J (Pitch)

117.0 mm

H (Height)

148.0 mm

M12

UCFL 206

Oval Flange

Shaft Diameter

30.0mm

Cr (Dynamic)

19.5 kN

Cor (Static)

11.3 kN

J (Pitch)

117.0 mm

H (Height)

148.0 mm

M12

UCFL 206-19

Oval Flange

Shaft Diameter

30.2mm

Cr (Dynamic)

19.5 kN

Cor (Static)

11.3 kN

J (Pitch)

117.0 mm

H (Height)

148.0 mm

M12

UCFL 206-20

Oval Flange

Shaft Diameter

31.8mm

Cr (Dynamic)

19.5 kN

Cor (Static)

11.3 kN

J (Pitch)

117.0 mm

H (Height)

148.0 mm

M12

UCFL 207-20

Oval Flange

Shaft Diameter

31.8mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

J (Pitch)

130.0 mm

H (Height)

161.0 mm

M14

UCFL 207-21

Oval Flange

Shaft Diameter

33.3mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

J (Pitch)

130.0 mm

H (Height)

161.0 mm

M14

UCFL 207-22

Oval Flange

Shaft Diameter

34.9mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

J (Pitch)

130.0 mm

H (Height)

161.0 mm

M14

UCFL 207

Oval Flange

Shaft Diameter

35.0mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

J (Pitch)

130.0 mm

H (Height)

161.0 mm

M14

UCFL 207-23

Oval Flange

Shaft Diameter

36.5mm

Cr (Dynamic)

25.7 kN

Cor (Static)

15.4 kN

J (Pitch)

130.0 mm

H (Height)

161.0 mm

M14

UCFL 208-24

Oval Flange

Shaft Diameter

38.1mm

Cr (Dynamic)

29.1 kN

Cor (Static)

17.8 kN

J (Pitch)

144.0 mm

H (Height)

175.0 mm

M14

UCFL 208-25

Oval Flange

Shaft Diameter

39.7mm

Cr (Dynamic)

29.1 kN

Cor (Static)

17.8 kN

J (Pitch)

144.0 mm

H (Height)

175.0 mm

M14

UCFL 208

Oval Flange

Shaft Diameter

40.0mm

Cr (Dynamic)

29.1 kN

Cor (Static)

17.8 kN

J (Pitch)

144.0 mm

H (Height)

175.0 mm

M14

UCFL 209-26

Oval Flange

Shaft Diameter

41.3mm

Cr (Dynamic)

34.1 kN

Cor (Static)

21.3 kN

J (Pitch)

148.0 mm

H (Height)

188.0 mm

M16

UCFL 209-27

Oval Flange

Shaft Diameter

42.9mm

Cr (Dynamic)

34.1 kN

Cor (Static)

21.3 kN

J (Pitch)

148.0 mm

H (Height)

188.0 mm

M16

UCFL 209-28

Oval Flange

Shaft Diameter

44.5mm

Cr (Dynamic)

34.1 kN

Cor (Static)

21.3 kN

J (Pitch)

148.0 mm

H (Height)

188.0 mm

M16

UCFL 209

Oval Flange

Shaft Diameter

45.0mm

Cr (Dynamic)

34.1 kN

Cor (Static)

21.3 kN

J (Pitch)

148.0 mm

H (Height)

188.0 mm

M16

UCFL 210-30

Oval Flange

Shaft Diameter

47.6mm

Cr (Dynamic)

35.1 kN

Cor (Static)

23.3 kN

J (Pitch)

157.0 mm

H (Height)

197.0 mm

M16

UCFL 210-31

Oval Flange

Shaft Diameter

49.2mm

Cr (Dynamic)

35.1 kN

Cor (Static)

23.3 kN

J (Pitch)

157.0 mm

H (Height)

197.0 mm

M16

UCFL 210

Oval Flange

Shaft Diameter

50.0mm

Cr (Dynamic)

35.1 kN

Cor (Static)

23.3 kN

J (Pitch)

157.0 mm

H (Height)

197.0 mm

M16

UCFL 210-32

Oval Flange

Shaft Diameter

50.8mm

Cr (Dynamic)

35.1 kN

Cor (Static)

23.3 kN

J (Pitch)

157.0 mm

H (Height)

197.0 mm

M16

UCFL 211-32

Oval Flange

Shaft Diameter

50.8mm

Cr (Dynamic)

43.4 kN

Cor (Static)

29.4 kN

J (Pitch)

184.0 mm

H (Height)

224.0 mm

M16

UCFL 211-34

Oval Flange

Shaft Diameter

54.0mm

Cr (Dynamic)

43.4 kN

Cor (Static)

29.4 kN

J (Pitch)

184.0 mm

H (Height)

224.0 mm

M16

UCFL 211

Oval Flange

Shaft Diameter

55.0mm

Cr (Dynamic)

43.4 kN

Cor (Static)

29.4 kN

J (Pitch)

184.0 mm

H (Height)

224.0 mm

M16

UCFL 211-35

Oval Flange

Shaft Diameter

55.6mm

Cr (Dynamic)

43.4 kN

Cor (Static)

29.4 kN

J (Pitch)

184.0 mm

H (Height)

224.0 mm

M16

UCFL 212-36

Oval Flange

Shaft Diameter

57.2mm

Cr (Dynamic)

52.4 kN

Cor (Static)

36.2 kN

J (Pitch)

202.0 mm

H (Height)

250.0 mm

M20

UCFL 212

Oval Flange

Shaft Diameter

60.0mm

Cr (Dynamic)

52.4 kN

Cor (Static)

36.2 kN

J (Pitch)

202.0 mm

H (Height)

250.0 mm

M20

UCFL 212-38

Oval Flange

Shaft Diameter

60.3mm

Cr (Dynamic)

52.4 kN

Cor (Static)

36.2 kN

J (Pitch)

202.0 mm

H (Height)

250.0 mm

M20

UCFL 212-39

Oval Flange

Shaft Diameter

61.9mm

Cr (Dynamic)

52.4 kN

Cor (Static)

36.2 kN

J (Pitch)

202.0 mm

H (Height)

250.0 mm

M20

UCFL 213-40

Oval Flange

Shaft Diameter

63.5mm

Cr (Dynamic)

57.2 kN

Cor (Static)

40.1 kN

J (Pitch)

210.0 mm

H (Height)

258.0 mm

M20

UCFL 213

Oval Flange

Shaft Diameter

65.0mm

Cr (Dynamic)

57.2 kN

Cor (Static)

40.1 kN

J (Pitch)

210.0 mm

H (Height)

258.0 mm

M20

UCFL 214-44

Oval Flange

Shaft Diameter

69.9mm

Cr (Dynamic)

62.2 kN

Cor (Static)

44.1 kN

J (Pitch)

216.0 mm

H (Height)

265.0 mm

M20

UCFL 214

Oval Flange

Shaft Diameter

70.0mm

Cr (Dynamic)

62.2 kN

Cor (Static)

44.1 kN

J (Pitch)

216.0 mm

H (Height)

265.0 mm

M20

UCFL 215-47

Oval Flange

Shaft Diameter

74.6mm

Cr (Dynamic)

67.4 kN

Cor (Static)

48.3 kN

J (Pitch)

225.0 mm

H (Height)

275.0 mm

M20

UCFL 215

Oval Flange

Shaft Diameter

75.0mm

Cr (Dynamic)

67.4 kN

Cor (Static)

48.3 kN

J (Pitch)

225.0 mm

H (Height)

275.0 mm

M20

UCFL 215-48

Oval Flange

Shaft Diameter

76.2mm

Cr (Dynamic)

67.4 kN

Cor (Static)

48.3 kN

J (Pitch)

225.0 mm

H (Height)

275.0 mm

M20

UCFL 216-50

Oval Flange

Shaft Diameter

79.4mm

Cr (Dynamic)

72.7 kN

Cor (Static)

53.0 kN

J (Pitch)

233.0 mm

H (Height)

290.0 mm

M22

UCFL 216

Oval Flange

Shaft Diameter

80.0mm

Cr (Dynamic)

72.7 kN

Cor (Static)

53.0 kN

J (Pitch)

233.0 mm

H (Height)

290.0 mm

M22

UCFL 217-52

Oval Flange

Shaft Diameter

82.6mm

Cr (Dynamic)

84.0 kN

Cor (Static)

61.9 kN

J (Pitch)

248.0 mm

H (Height)

305.0 mm

M22

UCFL 217

Oval Flange

Shaft Diameter

85.0mm

Cr (Dynamic)

84.0 kN

Cor (Static)

61.9 kN

J (Pitch)

248.0 mm

H (Height)

305.0 mm

M22

UCFL 218-56

Oval Flange

Shaft Diameter

88.9mm

Cr (Dynamic)

96.1 kN

Cor (Static)

71.5 kN

J (Pitch)

265.0 mm

H (Height)

320.0 mm

M22

UCFL 218

Oval Flange

Shaft Diameter

90.0mm

Cr (Dynamic)

96.1 kN

Cor (Static)

71.5 kN

J (Pitch)

265.0 mm

H (Height)

320.0 mm

M22
